Component Interconnections

4. The SDI does not include or require a monitor or mouse. However, you may want to use a monitor to initially verify normal operation.

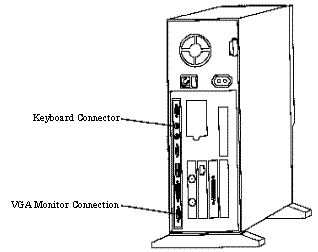

You can use any color or monochrome VGA monitor by connecting its data cable connector to the 15-pin D-connector located at the bottom-left corner of the computer, as shown in the drawing at the left.

The SDI is normally operated from a remote location by Telnet. Therefore, once normal operation is confirmed, there is no need for a monitor.


5. Connect the keyboard to the connector indicated in the drawing above.

The bit sync requirement is different for different satellite types. Refer to the Bit Sync Requirements description in the satellite-specific chapter for your ingestor for details.
