GOES VAS PRODUCTS EXAMPLE GIFS

Sequence Number	Variable Name	Description

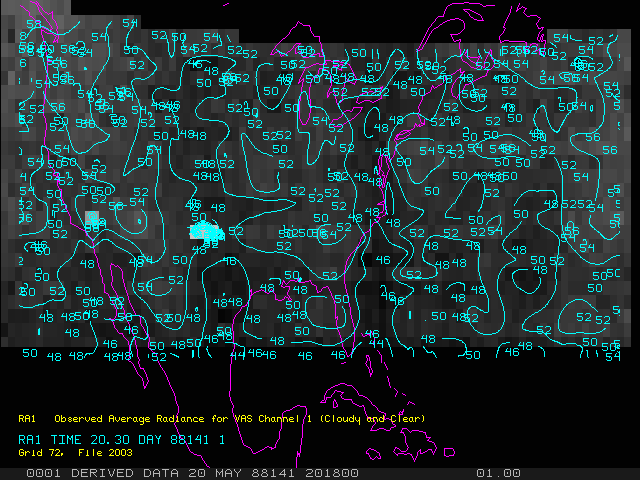

1	RA1	Observed Average Radiance for VAS Channel 1 (Cloudy and Clear)

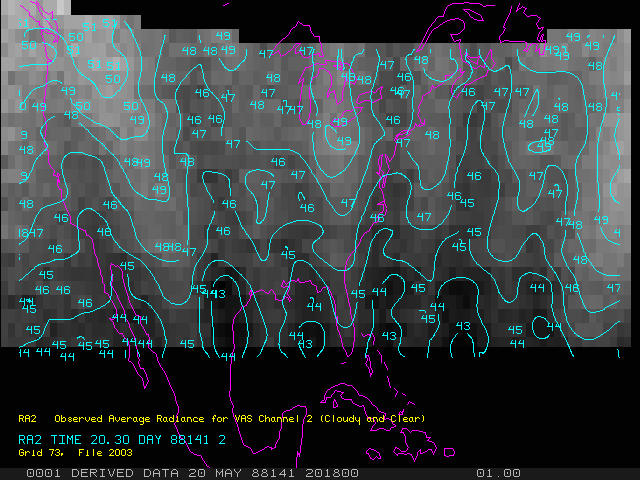

2	RA2	Observed Average Radiance for VAS Channel 2 (Cloudy and Clear)

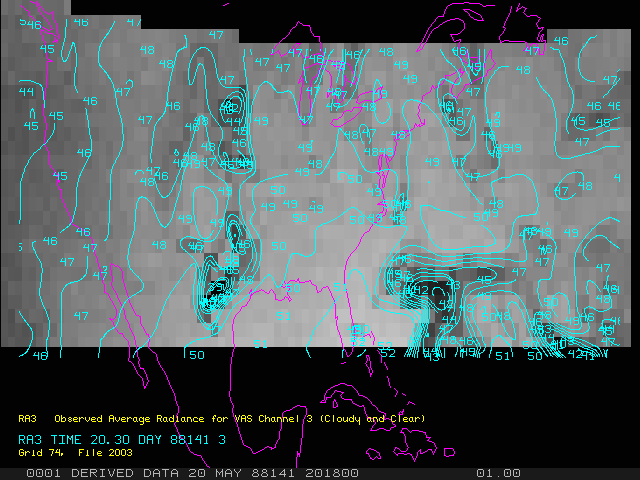

3	RA3	Observed Average Radiance for VAS Channel 3 (Cloudy and Clear)

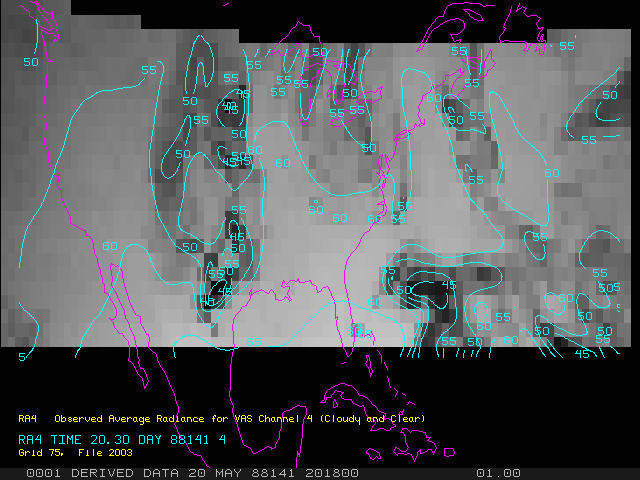

4	RA4	Observed Average Radiance for VAS Channel 4 (Cloudy and Clear)

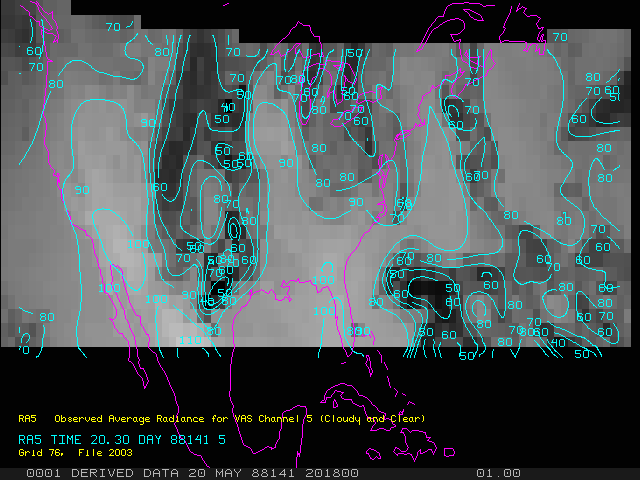

5	RA5	Observed Average Radiance for VAS Channel 5 (Cloudy and Clear)
6	RA6	Observed Average Radiance for VAS Channel 6 (Cloudy and Clear)

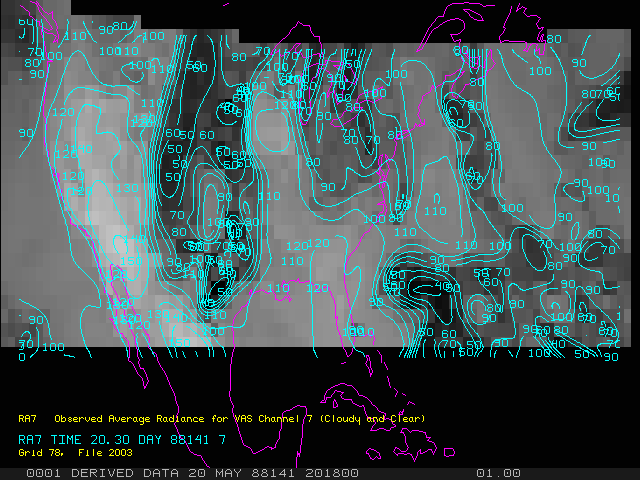

7	RA7	Observed Average Radiance for VAS Channel 7 (Cloudy and Clear)

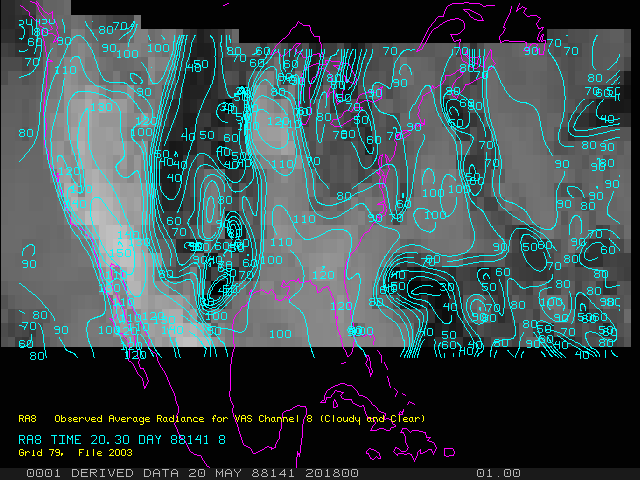

8	RA8	Observed Average Radiance for VAS Channel 8 (Cloudy and Clear)
9	RA9	Observed Average Radiance for VAS Channel 9 (Cloudy and Clear)
10	RA10	Observed Average Radiance for VAS Channel 10 (Cloudy and Clear)

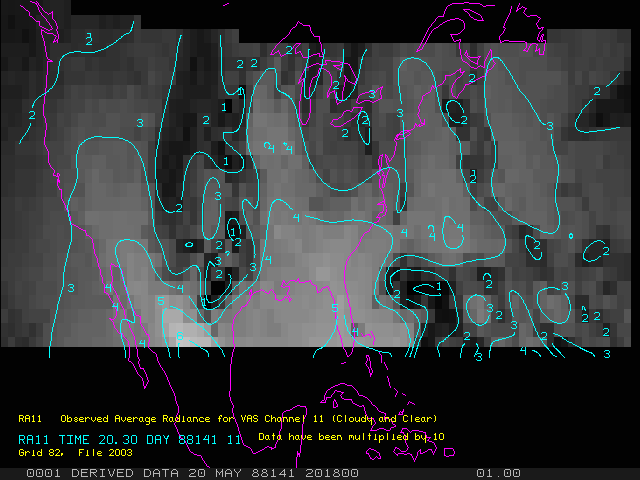

11	RA11	Observed Average Radiance for VAS Channel 11 (Cloudy and Clear)
12	RA12	Observed Average Radiance for VAS Channel 12 (Cloudy and Clear)
13	RC1	Estimated Clear Sky Radiance for VAS Channel 1
14	RC2	Estimated Clear Sky Radiance for VAS Channel 2

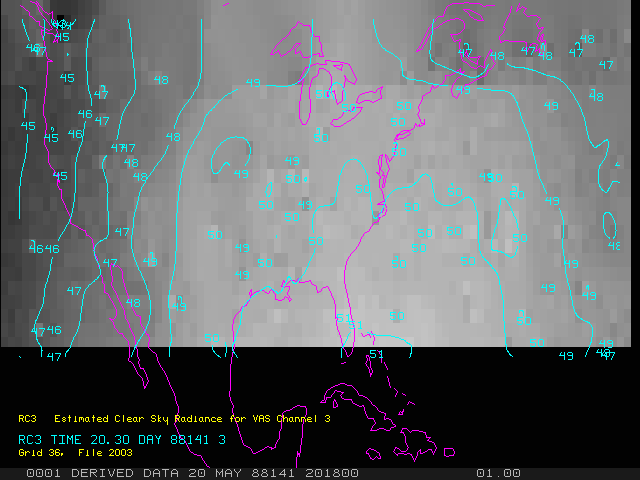

15	RC3	Estimated Clear Sky Radiance for VAS Channel 3

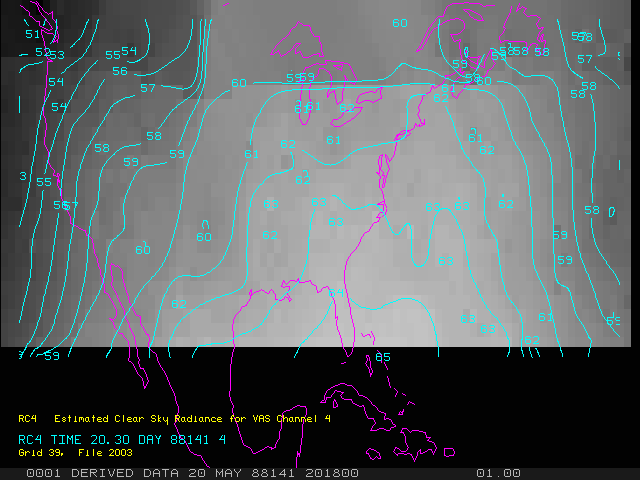

16	RC4	Estimated Clear Sky Radiance for VAS Channel 4

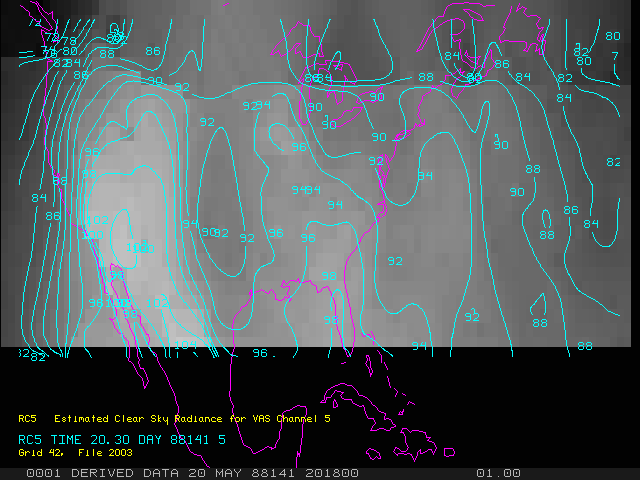

17	RC5	Estimated Clear Sky Radiance for VAS Channel 5
18	RC6	Estimated Clear Sky Radiance for VAS Channel 6

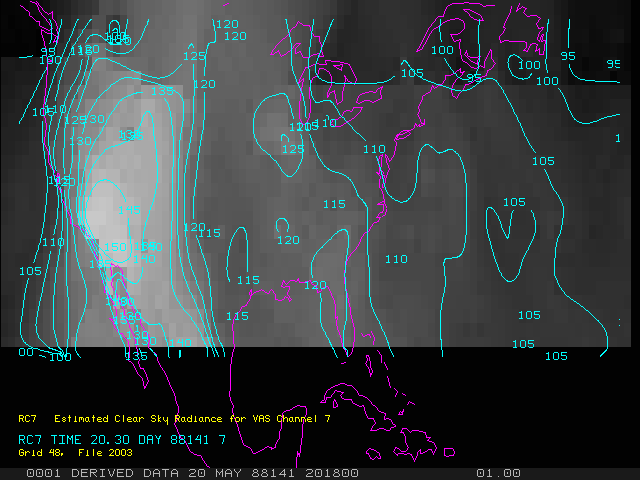

19	RC7	Estimated Clear Sky Radiance for VAS Channel 7
20	RC8	Estimated Clear Sky Radiance for VAS Channel 8

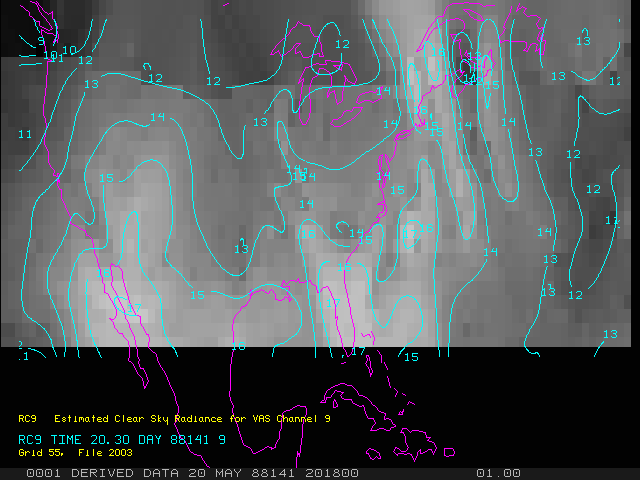

21	RC9	Estimated Clear Sky Radiance for VAS Channel 9

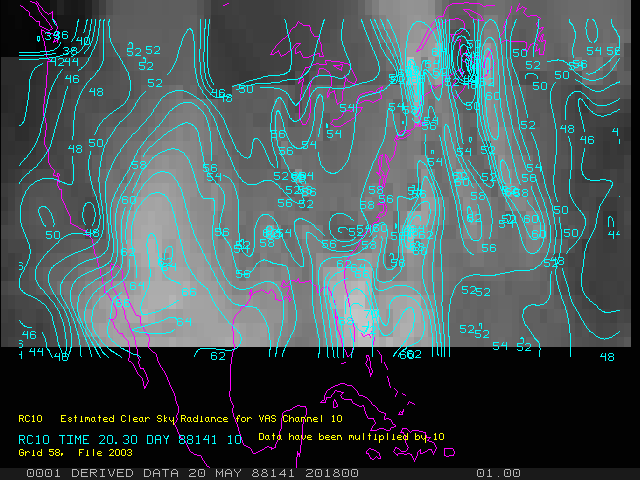

22	RC10	Estimated Clear Sky Radiance for VAS Channel 10
23	RC11	Estimated Clear Sky Radiance for VAS Channel 11

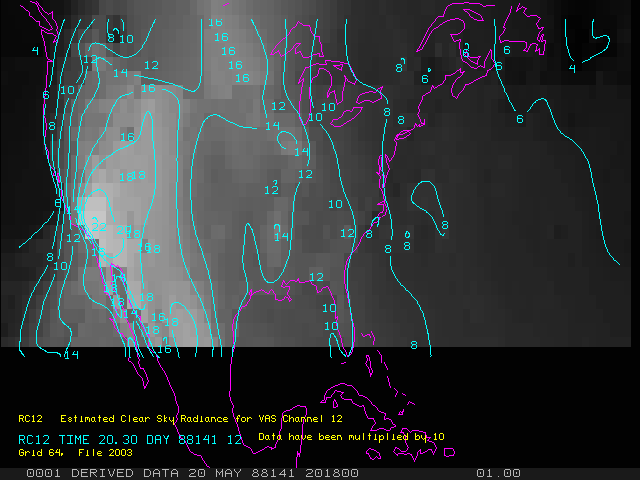

24	RC12	Estimated Clear Sky Radiance for VAS Channel 12

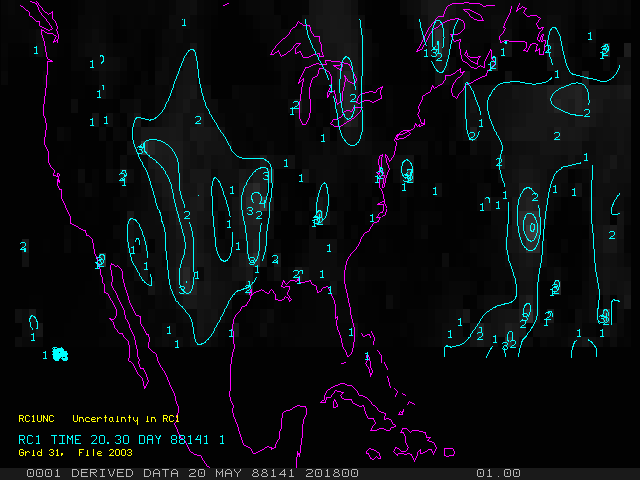

25	RC1UNC	Uncertainty in RC1

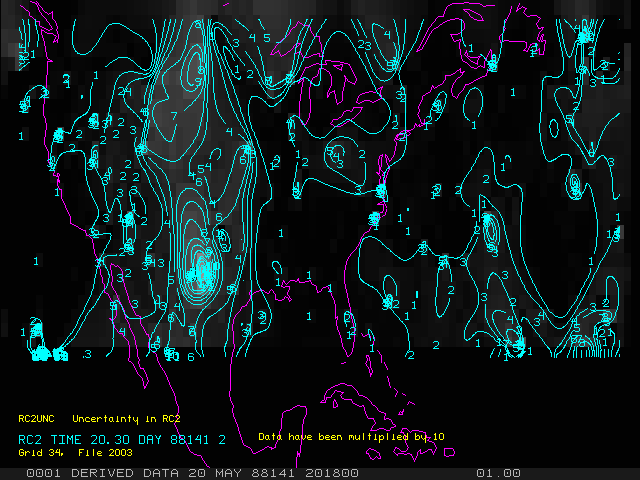

26	RC2UNC	Uncertainty in RC2

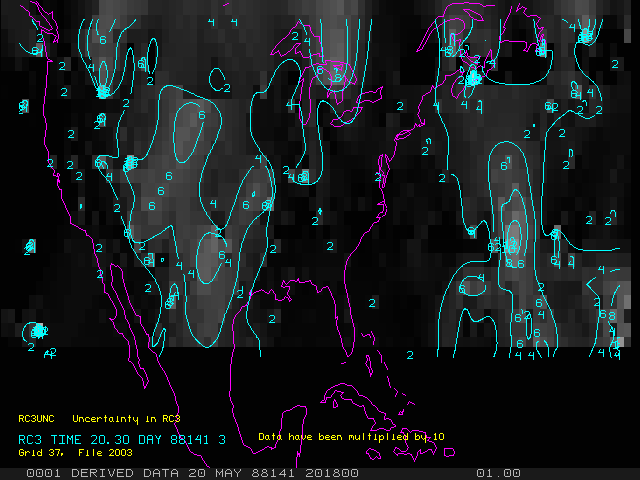

27	RC3UNC	Uncertainty in RC3

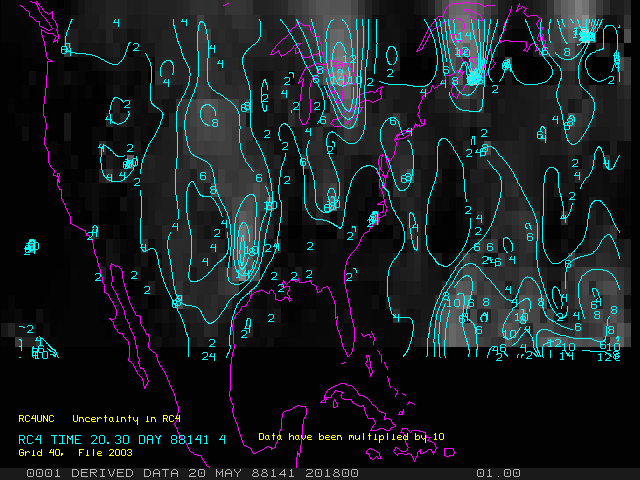

28	RC4UNC	Uncertainty in RC4
29	RC5UNC	Uncertainty in RC5

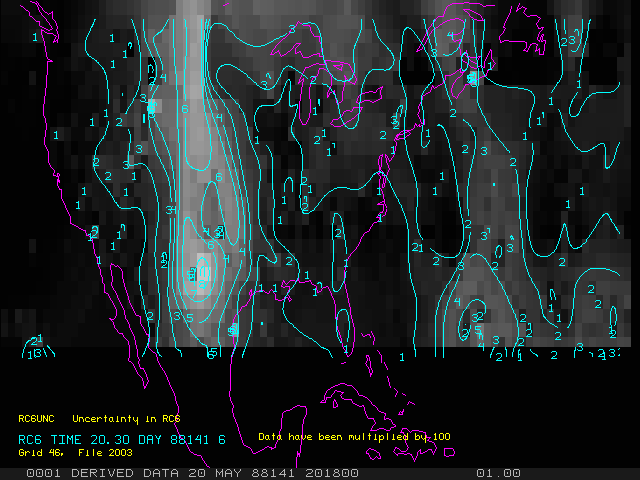

30	RC6UNC	Uncertainty in RC6
31	RC7UNC	Uncertainty in RC7

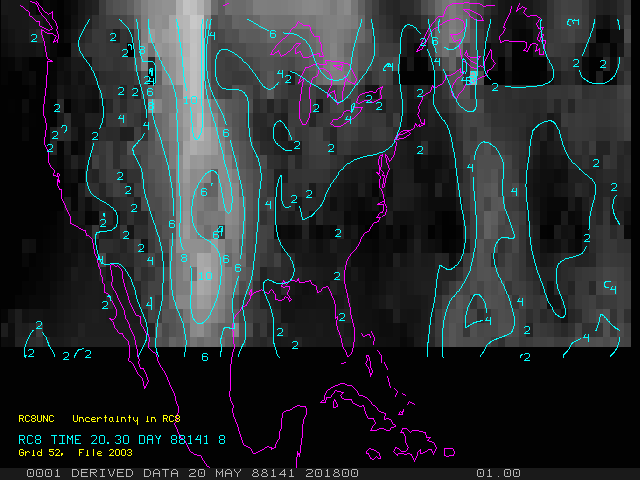

32	RC8UNC	Uncertainty in RC8

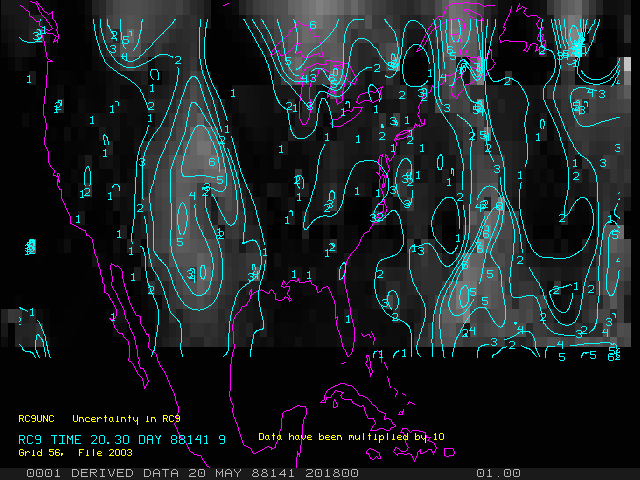

33	RC9UNC	Uncertainty in RC9

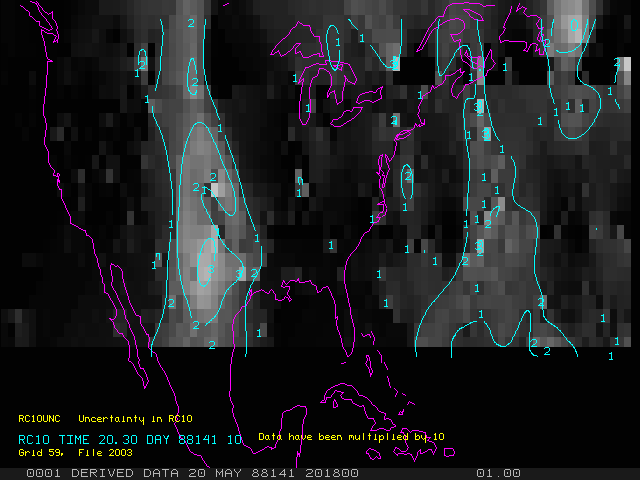

34	RC10UNC	Uncertainty in RC10

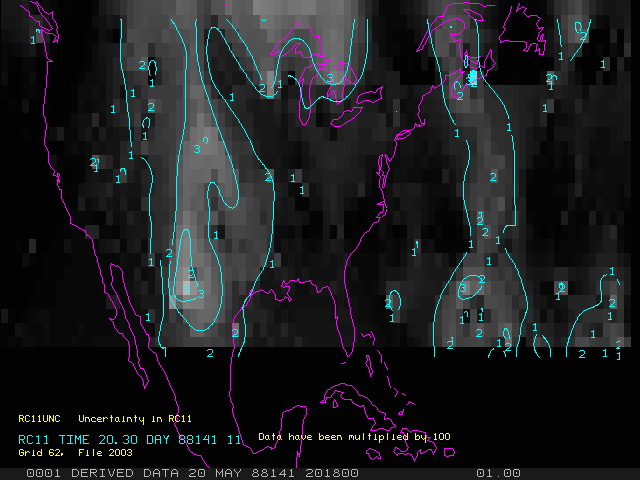

35	RC11UNC	Uncertainty in RC11

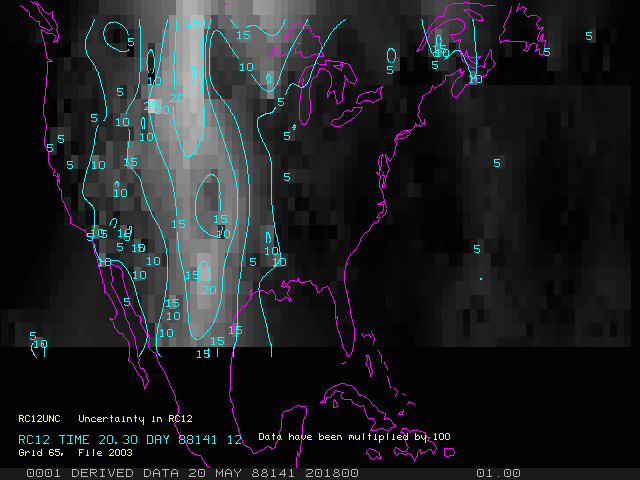

36	RC12UNC	Uncertainty in RC12
37	VISIBLE	Observed Average Visible Radiance (Cloudy and Clear)

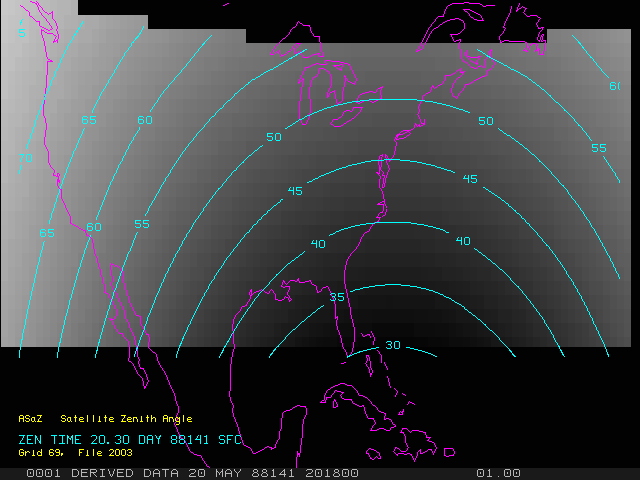

38	ASaZ	Satellite Zenith Angle
39	ASoZ	Solar Zenith Angle
40	ASoS	Solar Scattering Angle

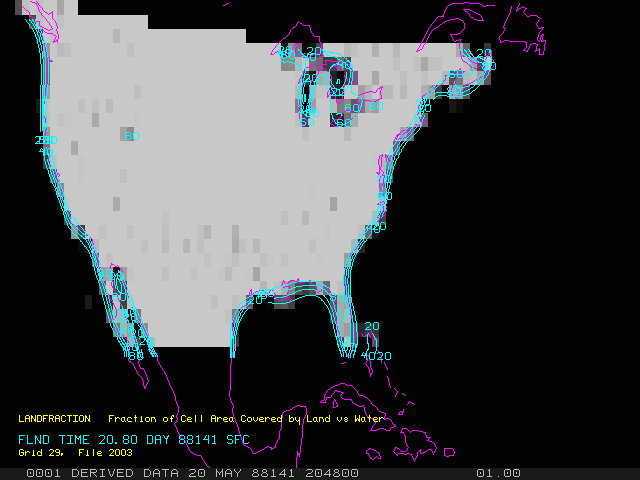

41	LANDFRACTION	Fraction of Cell Area Covered by Land vs Water

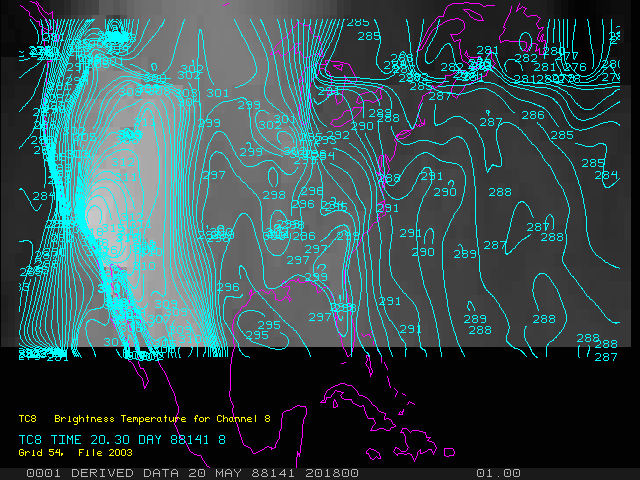

42	TC8	Brightness Temperature for Channel 8

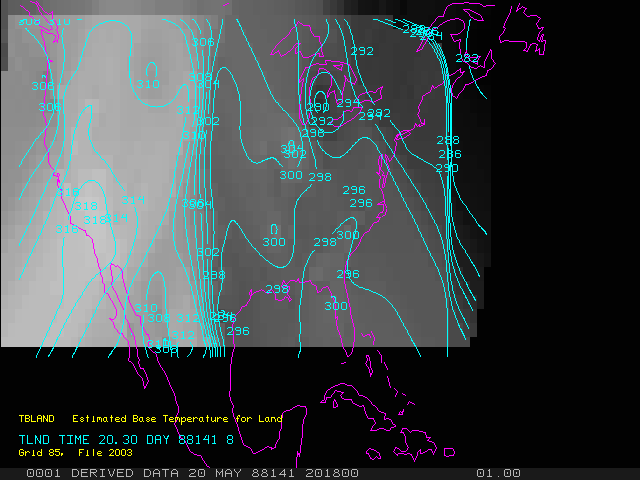

43	TBLAND	Estimated Base Temperature for Land

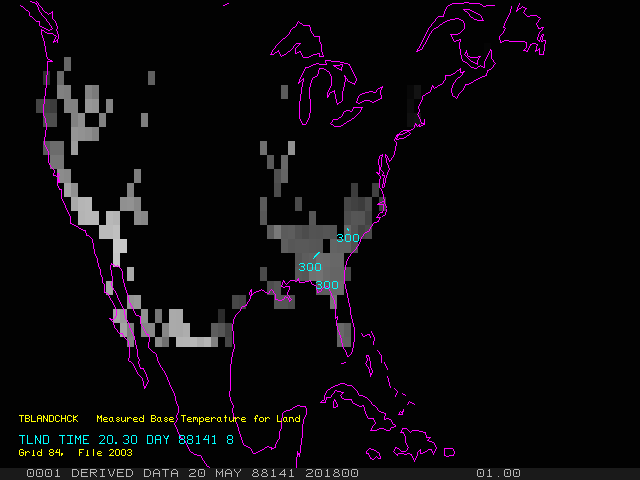

44	TBLANDCHCK	Measured Base Temperature for Land
45	TBLANDUNC	Uncertainty in TBLAND
46	TBWATER	Estimated Base Temperature for Water

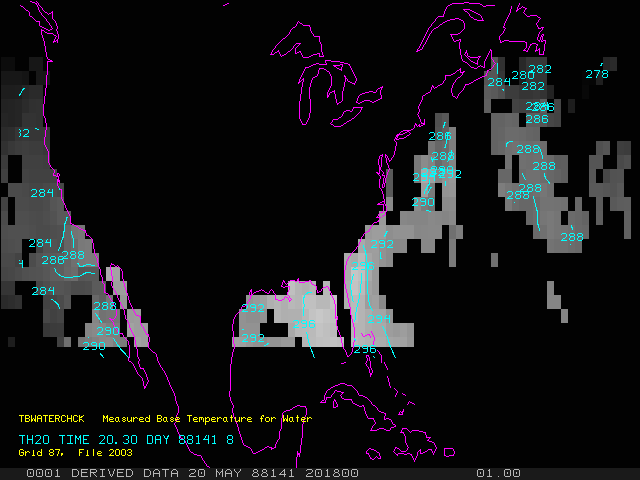

47	TBWATERCHCK	Measured Base Temperature for Water

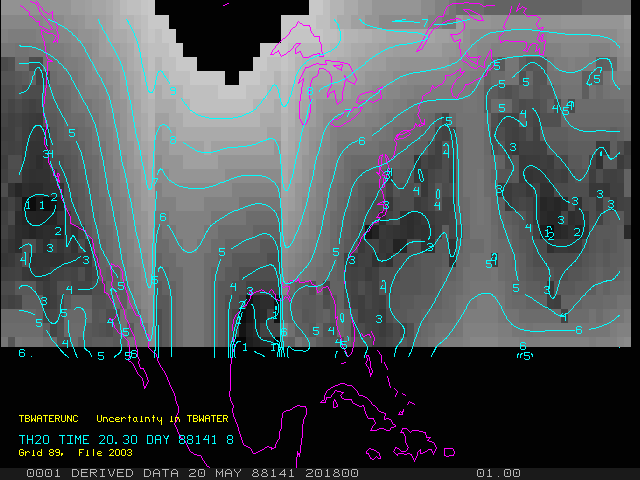

48	TBWATERUNC	Uncertainty in TBWATER

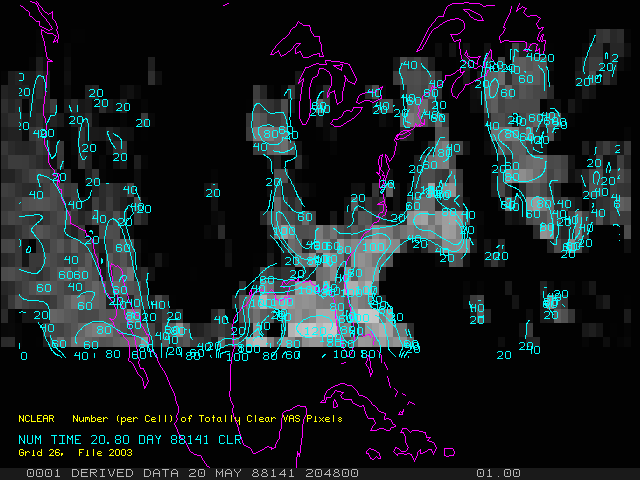

49	NCLEAR	Number (per Cell) of Totally Clear VAS Pixels

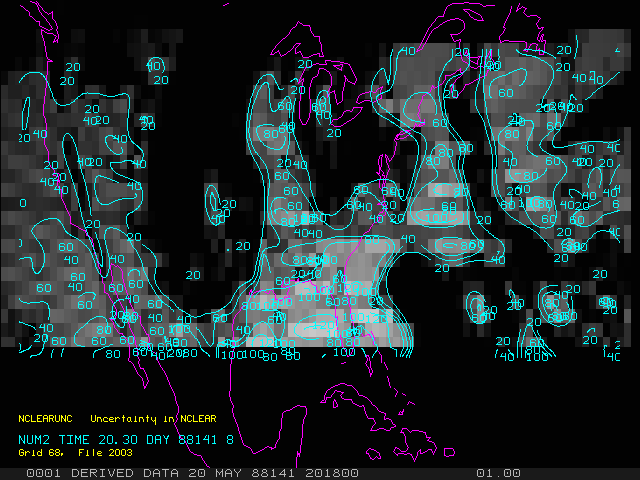

50	NCLEARUNC	Uncertainty in NCLEAR

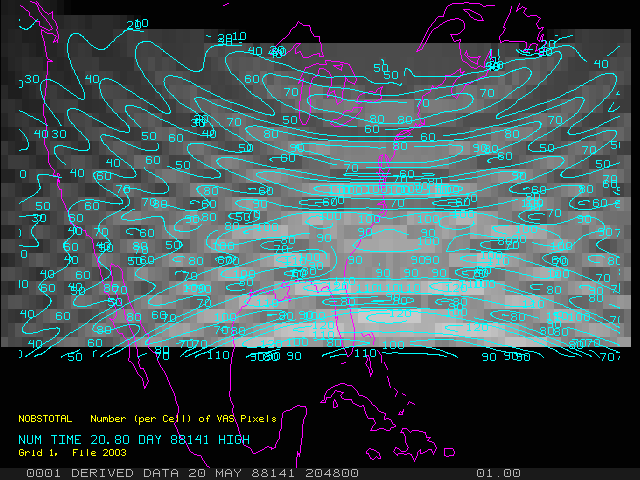

51	NOBSTOTAL	Number (per Cell) of VAS Pixels
52	PHIGH	Cell Average Cloud Top Pressure for High Cloud

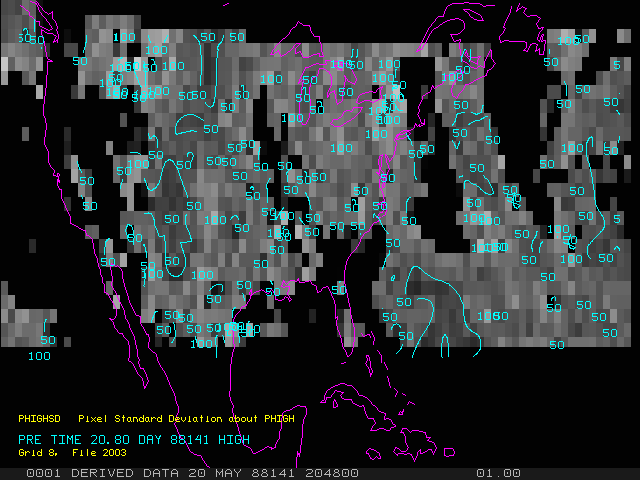

53	PHIGHSD	Pixel Standard Deviation about PHIGH

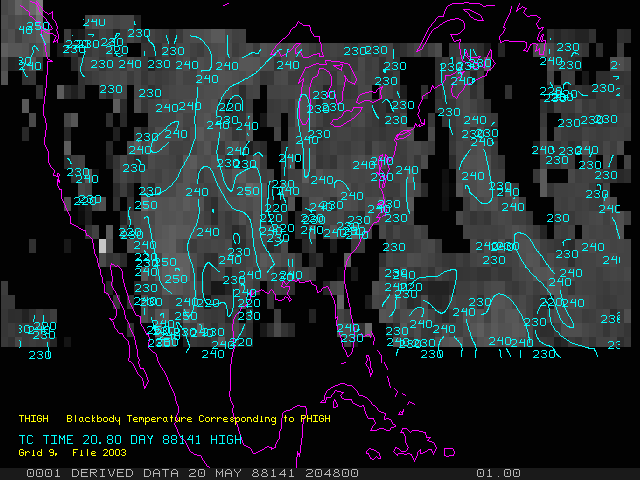

54	THIGH	Blackbody Temperature Corresponding to PHIGH

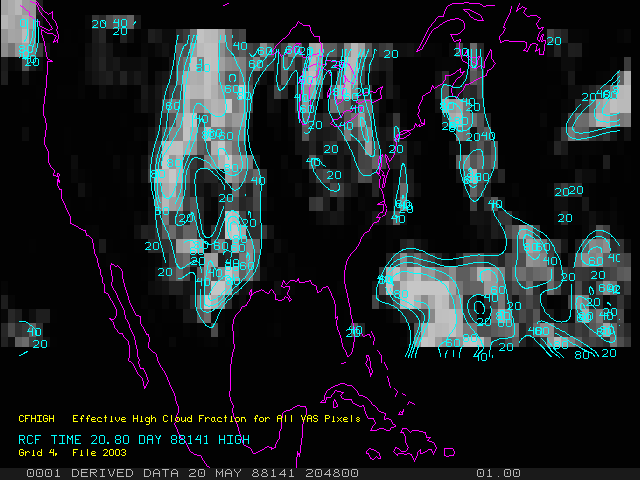

55	CFHIGH	Effective High Cloud Fraction for All VAS Pixels

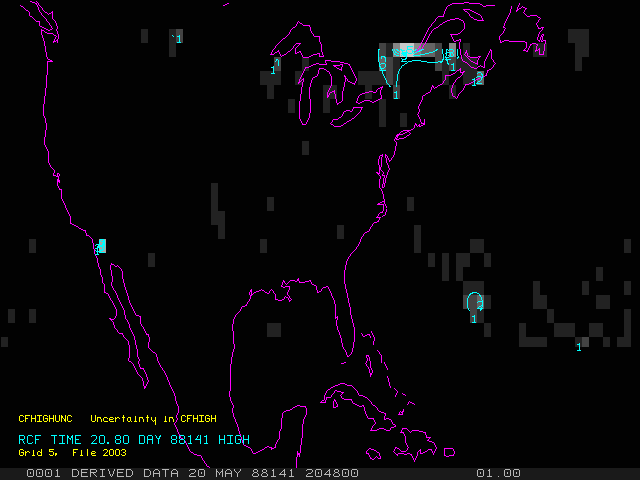

56	CFHIGHUNC	Uncertainty in CFHIGH

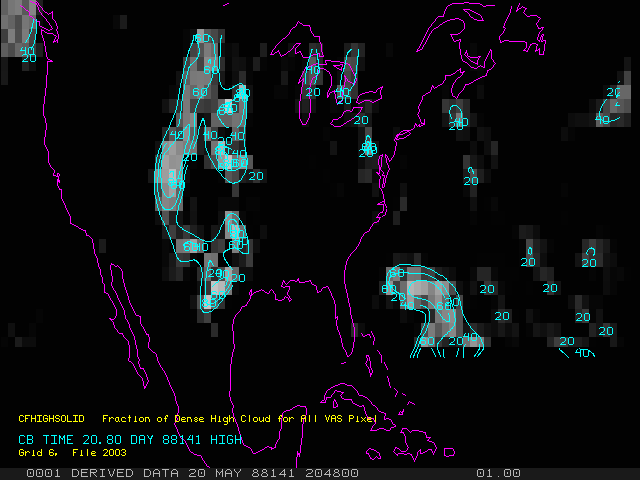

57	CFHIGHSOLID	Fraction of Dense High Cloud for All VAS Pixel
58	NOBSMIDDLE	Number (per Cell) of Pixels Potentially Reporting Middle Cloud
59	PMIDDLE	Cell Average Cloud Top Pressure for Middle Cloud

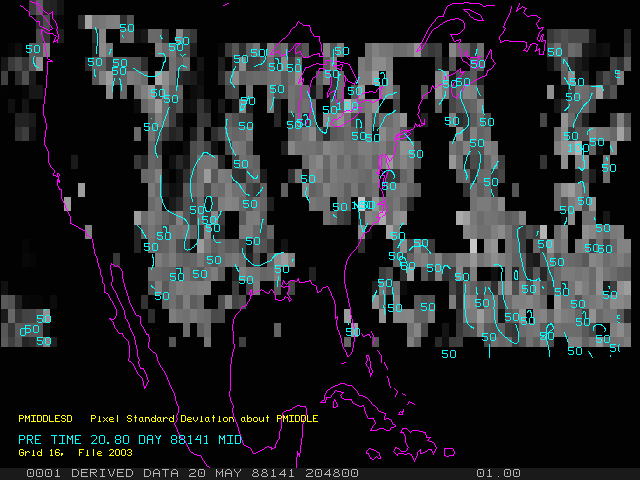

60	PMIDDLESD	Pixel Standard Deviation about PMIDDLE

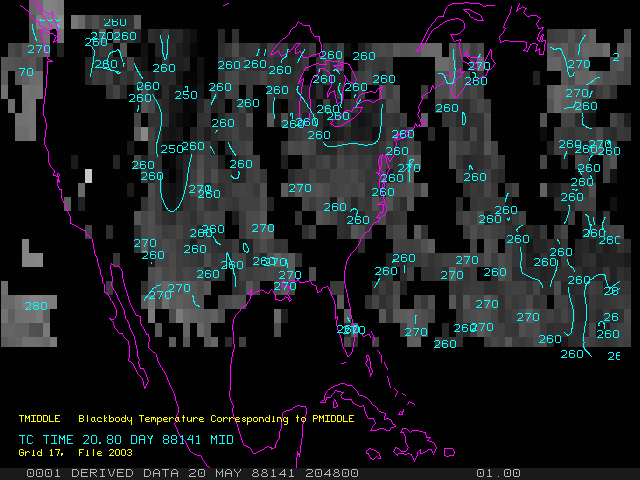

61	TMIDDLE	Blackbody Temperature Corresponding to PMIDDLE

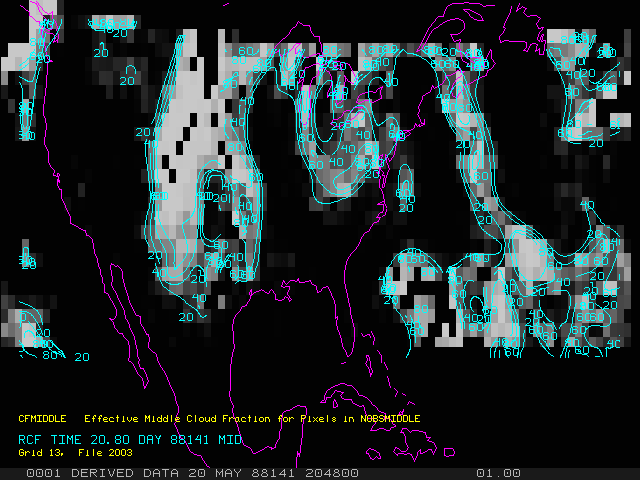

62	CFMIDDLE	Effective Middle Cloud Fraction for Pixels in NOBSMIDDLE

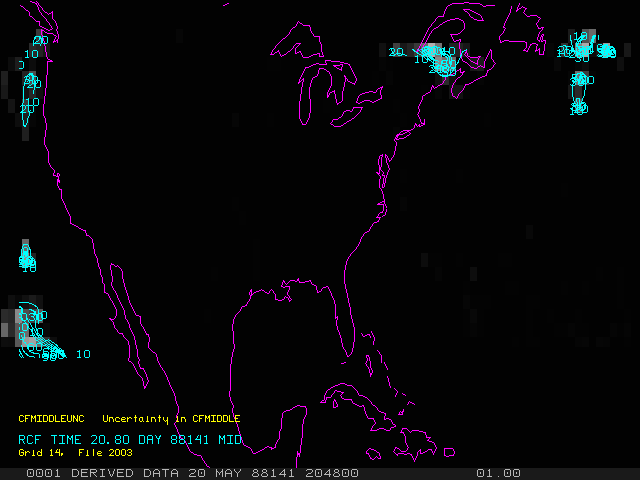

63	CFMIDDLEUNC	Uncertainty in CFMIDDLE

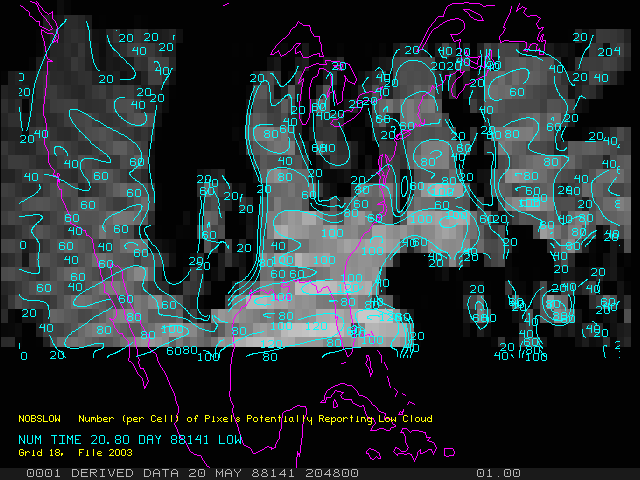

64	NOBSLOW	Number (per Cell) of Pixels Potentially Reporting Low Cloud
65	PLOW	Cell Average Cloud Top Pressure for Low Cloud

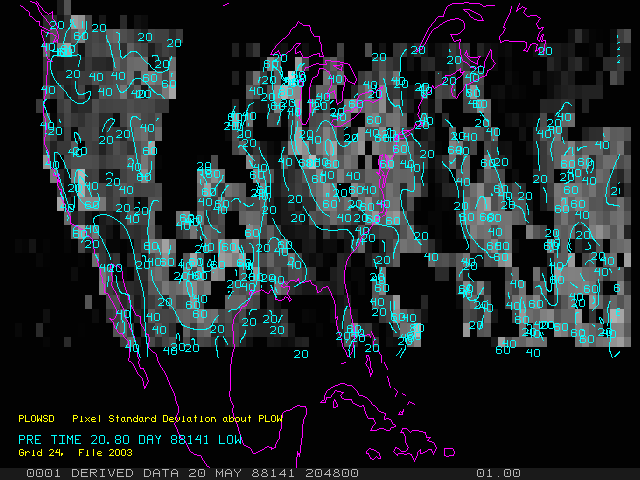

66	PLOWSD	Pixel Standard Deviation about PLOW

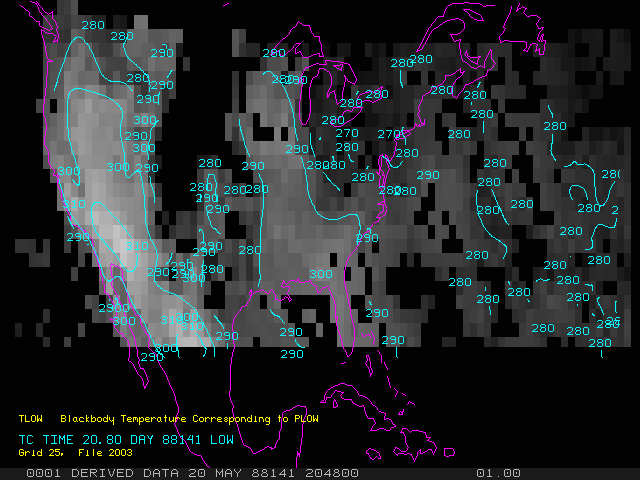

67	TLOW	Blackbody Temperature Corresponding to PLOW

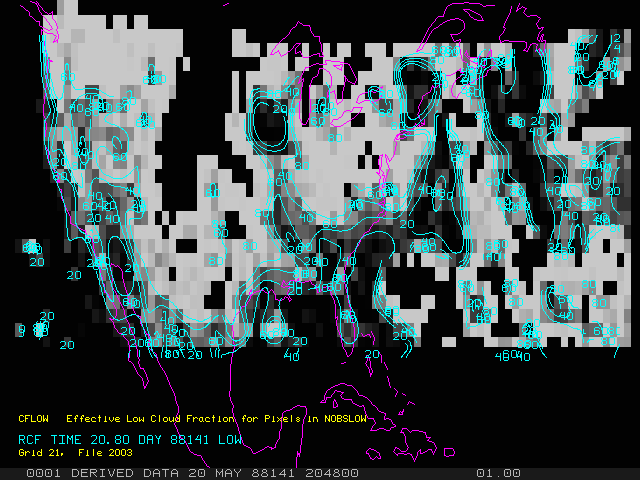

68	CFLOW	Effective Low Cloud Fraction for Pixels in NOBSLOW

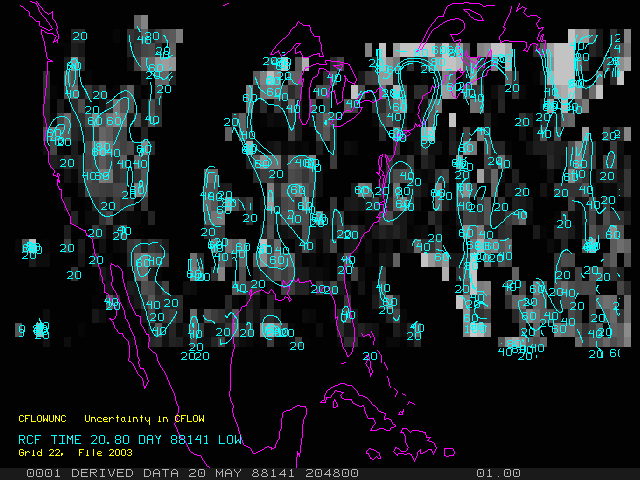

69	CFLOWUNC	Uncertainty in CFLOW
