Power Requirements

3. Check that the voltage-selection switch is set to the correct position.

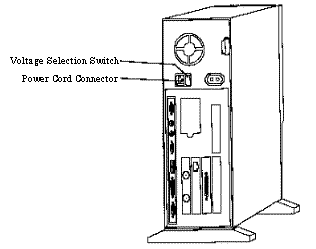

The PC Server 310 runs on one of two switch selectable AC voltage ranges, 90-137 VAC or 180-265 VAC. The voltage-selection switch is located immediately to the right of the AC power cord connector, as shown in the drawing above. If your voltage is between 90 VAC and 137 VAC check to see that 115 is visible on the switch; if your voltage is between 180 VAC and 265 VAC, check to see that 230 is visible on the switch.

CAUTION!    If you set the voltage switch to the wrong position, you might permanently damage your SDI when you turn it on.
