McIDAS-XCD Status Display Window

The McIDAS-XCD Status Display window lists information about the data that is being processed by the ingestors and data monitors. The Status Display window can be started with the statdisp command.

A sample Status Display window is shown in Figure 3; the table below it defines each field in the display. The top section of the display shows the status of the ingestors. In the sample display the text ingestor INGETEXT last filed data at byte 804628400 in the raw text file and last filed data in the index file SR08154.IDX at byte location 3677536. The bottom section of the display shows the status of the data monitors. In the sample display the surface observation data monitor SAODEC has decoded data from the raw text file at byte offset 563088. You can tell that SAODEC is up to date because the Begptr and Lasptr fields are identical. Once SAODEC has read up to byte 563088 it rereads the index file SA08154.IDX to determine if there is more data to be decoded. If no more data is available then the data monitor will wait 30 seconds and then try again. In the sample display, SAODEC last wrote to MD file MDXX0004 at row 52 and column 5686. The GRIB entry (old McIDAS GRID decoder) is red because it's inactive.

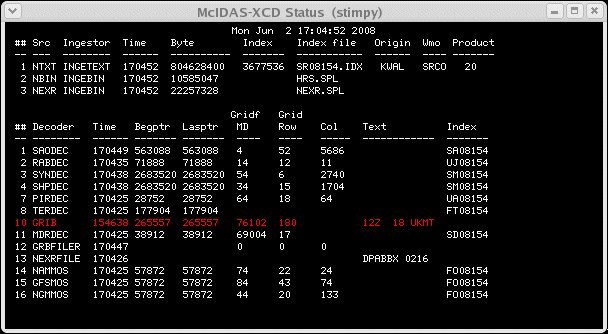

Figure 3. Sample Status Display Window



The table below defines each field in the Status Display window.

Field

Definition

##

ingestor

Src

circuit receiving the data

Ingestor

ingestor command name

Time

time the data was last received

Byte

last byte number the ingestor wrote

Index

last directory location the ingestor filed; not used by INGEBIN

Index file

index file name last written to; for INGEBIN this field displays the spool name

Origin

origin of the last block filed; the value is extracted from the WMO header; not used for INGEBIN

Wmo

product header of the last block filed; not used by INGEBIN

Product

WMO product number of the last block filed; not used by INGEBIN





##

data monitor number

Decoder

decoder name

Time

time data was last processed

Begptr

current index location being decoded

Lasptr

last index location decoder processes before checking for more data

Gridf/MD

last GRID or MD file the decoder wrote to

Grid/Row

last GRID number or ROW number written to

Col

last MD column number written to

Text

text description of the decoder process

Index

name of index file used to keep track of data in the raw text file
