UML-RT connectors implemented the C++ Template-fu way

0.1

SimpleConnector diagram

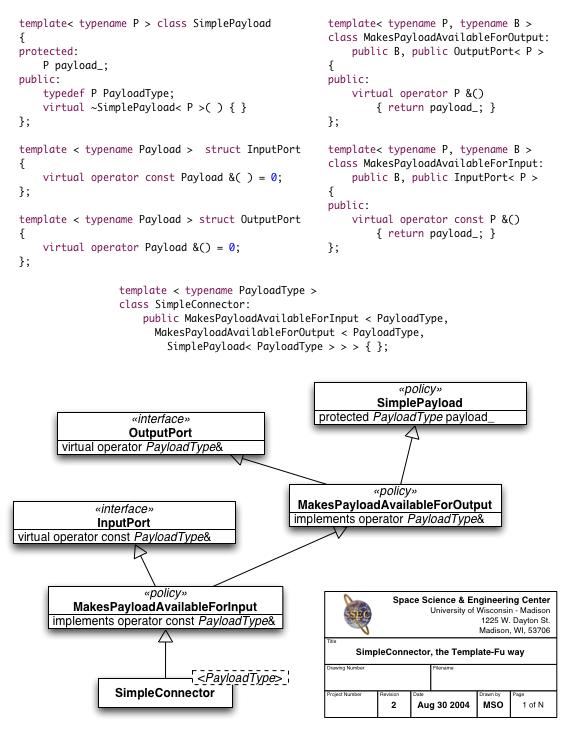

The following diagram shows how the simple connector (whose payload, input and output data structures are one and the same, set at compile time) is built up from its component templated interfaces.
PoliciedConnector diagram

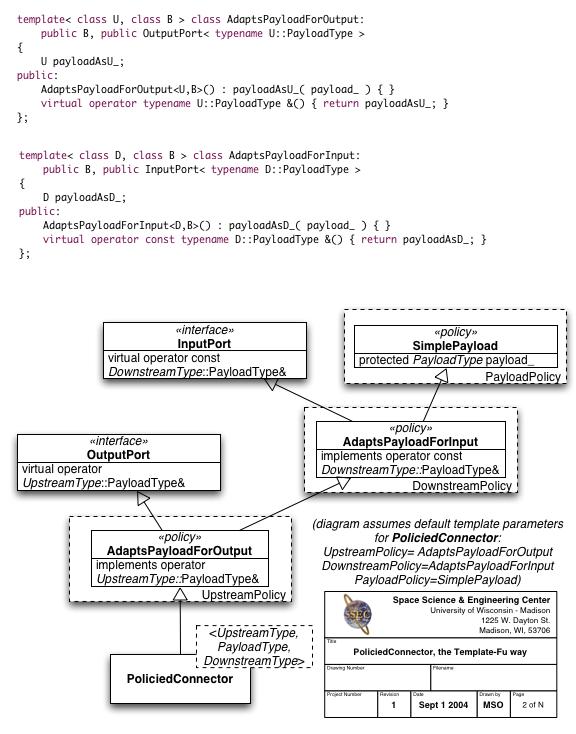

The policied connector is a bit more complex, allowing an underlying payload type to be adapted variously for input and output, using different adaptation policies.
