Graphics and the Cursor - Contouring Data With the Cursor

In this exercise, you will contour the temperatures and brightness levels of an image.
  1. Erase the graphics in frame 1. Display the latest GOES-7 4km IR image on frame 1 centered on 36° N and 104° W. Magnify the resolution by a factor of 4.
    Type:  ERASE G 1;IMGDISP GI4 1 LATLON=36 104 MAG=4 SF=YES

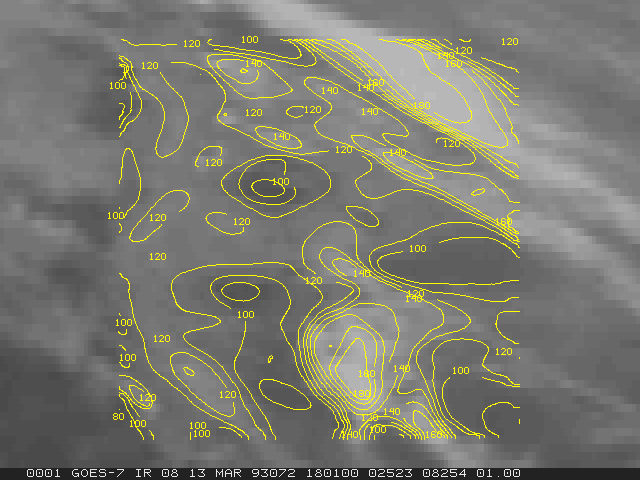

  2. Position the cursor in the center of the frame. Contour the brightness levels using a contour interval of 10 inside a 401 by 401 pixel cursor.
    Type:  PC C;IMGPROBE CONT BOX BRIT SIZE=401 401 CINT=10 MODE=N

  3. Display the latest GOES-7 4km IR image on frame 2 centered on 36° N and 104° W. Magnify the resolution by a factor of 4.
    Type:  IMGDISP GI4 2 LATLON=36 104 MAG=4 SF=Y
  4. Position the cursor in the center of the frame. Contour the temperature inside a 401 by 401 pixel cursor. Specify a contour interval of 5 Kelvin.
    Type:  PC C;IMGPROBE CONT BOX TEMP SIZE=401 401 CINT=5 MODE=N
