Suomi NPP Instrument Packages Already Hard at Work

May 16, 2012 | Mark Hobson

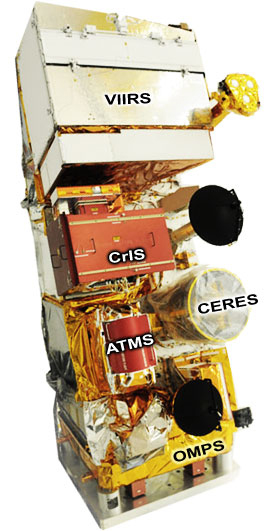

NASA’s newest Earth-observing satellite, the Suomi National Polar-orbiting Partnership (NPP), is a critical first step in building the next generation of satellite systems. Its many instruments are already providing key data critical for climate science:

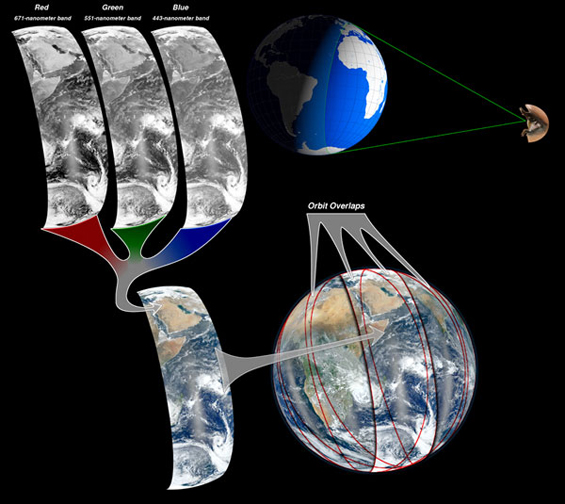

The Visible Infrared Imager Radiometer Suite (VIIRS) is the largest instrument onboard the Suomi NPP and collects radiometric imagery in visible and infrared wavelengths of the Earth’s land, atmosphere, and oceans.

viirs how to image

Credit: NASA/NOAA.


The Crosstrack Infrared Sounder (CrIS) signal processors were powered up on 7:48 EST on 20 January 2012. Calibrated radiance spectra were generated about 30 minutes after receiving the RDR data.

cris data

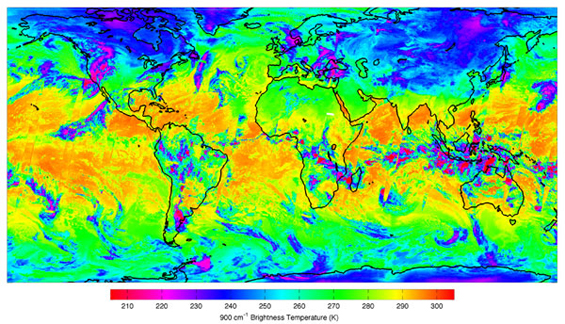

CrIS 900 1/cm brightness temperatures collected on 20 January 2012. Credit: NASA/NOAA.

Raw data was received at SSEC via the NPP Atmospheres Product Evaluation and Test Element (PEATE) and then processed with the CrIS Calibration Algorithm and Sensor Testbed (CCAST), developed jointly by CrIS Cal/Val colleagues at the University of Wisconsin-Madison and the University of Maryland Baltimore County to produce calibrated/geolocated radiance spectra. Sample figures show global images of 900 1/cm brightness temperature, and sample spectra.

SDR products were generated routinely by IDPS and available within another day. If the current schedule holds, the Cal/Val team will finish its early checkout phase, concluding with an upload of refined calibration coefficients, on 03 March 2012.


Continuing the pioneering work that commenced with Verner Suomi’s radiation budget experiment launched on Explorer 7 in October 1959, the Clouds and the Earth’s Radiant Energy System (CERES) instrument onboard the Suomi NPP satellite has begun scanning Earth, taking measurements of the energy leaving the Earth-atmosphere system.

The CERES results help scientists to determine the Earth’s energy balance, providing a long-term record of this crucial environmental parameter that will be consistent with those of its predecessors.

heat budget image

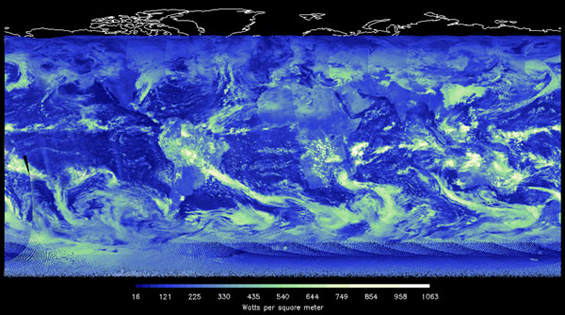

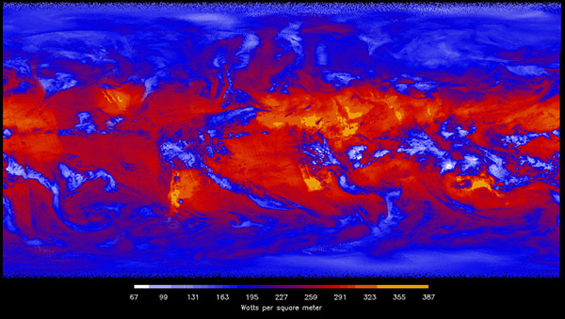

Thick cloud cover tends to reflect a large amount of incoming solar energy back to space (blue/green/white image), but at the same time, reduce the amount of outgoing heat lost to space (red/blue/orange image). Contrast the areas that do not have cloud cover (darker colored regions) to get a sense for how much impact the clouds have on incoming and outgoing energy. Credit: NASA/NOAA/CERES Team.


The Advanced Technology Microwave Sounder (ATMS) is a cross-track scanner with 22 channels that provides sounding observations to measure atmospheric temperature and moisture useful for both weather forecasting and climate monitoring.

atms data

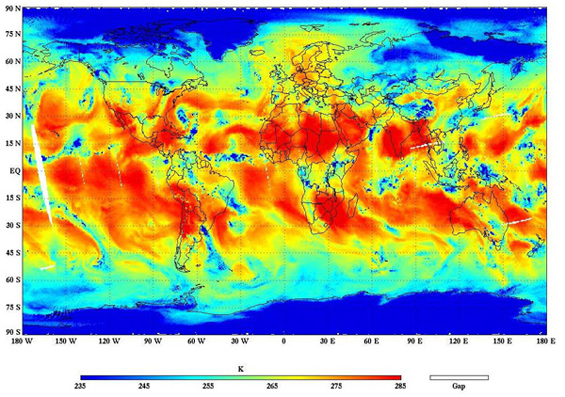

This global image shows the ATMS channel 18-microwave antenna temperature at 183.3 GHz on 08 November 2011. This channel measures atmospheric water vapor; note that Tropical Storm Sean is visible in the data, as the blue patch, in the Atlantic off the coast of the Southeastern United States. Credit: NASA/NOAA


In addition, the Suomi NPP satellite instrument suite is now sending back detailed information about the health of the Earth’s ozone layer, the shield that protects the world’s population from harmful levels of the sun’s ultraviolet radiation.

The Ozone Mapper and Profiler Suite (OMPS) is one of five new instruments flying aboard NASA’s Suomi National Polar-orbiting Partnership satellite (NPP), which was launched on 28 October 2011. Suomi NPP is the result of a partnership between NASA, the National Oceanic and Atmospheric Administration and the Department of Defense.

ozone measurements

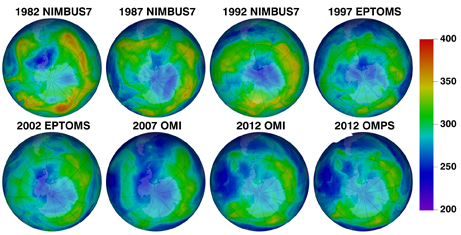

These images show the thickness of the Earth’s ozone layer on 27 January from 1982 to 2012. This atmospheric layer protects Earth from dangerous levels of solar ultraviolet radiation. The thickness is measured in Dobson units, in this image, smaller amounts of overhead ozone are shown in blue, while larger amounts are shown in orange and yellow.

These ozone measurements begin with the Nimbus 7 satellite; continue with the Earth Probe Total Ozone Mapping Spectrometer (EP TOMS); the Ozone Monitoring Instrument (OMI) aboard the Aura satellite; and the most recent, the Ozone Mapper Profiler Suite (OMPS) aboard the satellite Suomi National Polar-orbiting Partnership (NPP). Credit: NASA/NOAA.

ozone limb measurement

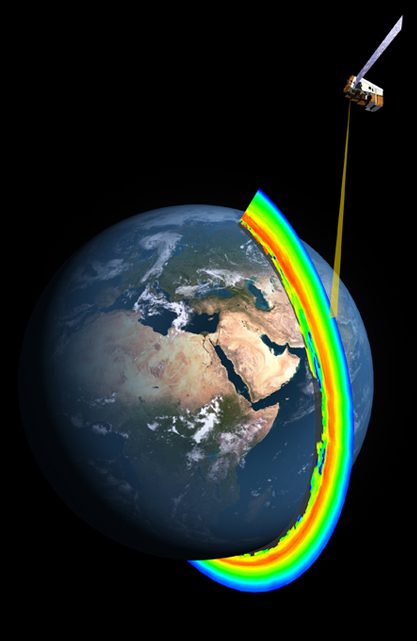

A cross-section of the Earth’s ozone layer as measured by the limb profiler, part of the Ozone Mapper Profiler Suite that’s aboard the Suomi NPP satellite. A new instrument, the limb profiler makes high vertical resolution measurements of of the ozone layer, a shield that protects the Earth’s surface from the sun’s dangerous ultraviolet radiation. Smaller amounts of overhead ozone is shown in blue, while larger amounts are shown in orange and yellow. Credit: NASA/NOAA.

Honoring Verner Suomi, Satellite Meteorology Pioneer

NASA and NOAA renamed their newest Earth-observing satellite after Verner Suomi, the longtime University of Wisconsin-Madison professor often called the father of satellite meteorology. The National Polar-orbiting Operational Environmental Satellite System Preparatory Project (NPP) satellite now functions as the Suomi NPP — the Suomi National Polar-orbiting Partnership.

Suomi, who died in 1995, spent nearly his entire career at UW-Madison. He may be best known for the spin-scan camera, which allowed satellites in stationary orbit of one point on Earth to maintain continuous focus and enable, among other capabilities, the instant-replay-style weather images that are used on television.

More information about the Suomi NPP can be found at NASA and NOAA, on the AMS blog, at the UW-Madison news site, and in previous news releases from SSEC and CIMSS.
